Nanomaterials and Devices LLC has access to a wide class of CNC machines in the region and beyond, has an extensive network of partnerships, and is ready to sell products of any complexity from stainless steel, aluminum, titanium and molybdenum.
The list of metalworking centers to which there is constant access:
CNC Vertical Milling Machining Center VF-2 (Haas Automation) with rotary table HRT 210.
The Haas vertical milling machine is distinguished by its characteristics, which allow high-quality, high-purity metalworking of various materials. CNC installed on the equipment provides its high performance. The convenience of work is determined by the ability to view micro commands on liquid crystal screens, which are equipped with all models of vertical milling machines. The milling machining center Haas VF-2 is capable of performing a fairly wide range of various tasks: surface treatment, mold making, chamfering, etc. As for the possibilities of working with various materials, the Haas vertical milling machine can be used to process parts made of materials such as steel, titanium, aluminum, alloys.
Technical characteristics
Working area options
Maximum distance from table to spindle end
Minimum distance from table to spindle end
Table length
Table width
Maximum table load (evenly distributed)
T-slot width
T-slot distance
Spindle options
Spindle
ISO 40 cone
Direct drive
Options of displacement of operating entities
The magnitude of the working movements along the axes X Y Z
The maximum value of working feeds
The maximum speed of idle movements of operating entities
CNC device options
Device type
Number of steered axes
Program Processing Speed
Type of interface for connecting removable storage media
Positioning accuracy
Workspace Options
Maximum distance from table to spindle end
Minimum distance from table to spindle end
737 mm
102 mm
1219 mm
457 mm
1588 kg
16 mm
80 mm
10,000 rpm
ISO 40
22.4 kW
762 mm x 406 mm x 508 mm
16.5 m / min
25.4 m / min
Haas CNC
3
up to 1000 blocks / sec
USB
± 0.0050 mm
737 mm
102 mm
CNC control options
-
ISO programming in G-codes;
-
2D graphic visualization;
-
17 built-in standard processing cycles;
-
text editor of control programs;
-
circular multifunctional JOG handwheel;
-
calculator for calculating cutting conditions and geometry;
-
monitoring of the cutting tool for load and durability;
-
tool compensation function with the ability to account for wear;
-
metric and inch system;
-
the ability to continue the program from any frame;
-
5 additional M-functions for auxiliary equipment.
EDM wire-cutting machine MV1200S Advance (Mitsubishi Electric).
The strength of CNC EDM machines is the ability to process non-standard materials that are difficult to process (hard alloy, PCD, cubic boron nitride, carbon metal, and many others). Basically, machines are used to meet the needs of industrial production - the manufacture of dies, tooling for molding plastics and metals; in the medical industry, watch and aerospace industries.
Technical characteristics
Maximum workpiece size
Maximum workpiece weight
Table size
Axis movements (X / Y / Z)
Axis movements (U / V)
Wire Angle / Part Height
Best roughness
Precision achieved on the part
The diameter of the wire
Weight of coil with wire:
Minimum filling hole
Dielectric
Pulse generator
Maximum working current
Control system
Dielectric tank volume
The degree of filtration of the working fluid
Number of filters
Ion exchange resin tank volume
Dielectric Compressor Cooling System
Total plug-in electrical power
Active power consumption / in sleep mode
Compressed air pressure
Max. compressed air consumption
810x700x215 mm
500 kg
640x540 mm
400x300x220 mm
120x120 mm
15 ° / 200 mm, 30 ° / 87 mm
Ra 0.25 μm
± 0.002 mm
0.1-0.3 mm
10 (20/50) kg
0.5 mm
deionized water
anti-electrolysis V350V with fully digital control DAE II
50 A
MITSUBISHI ADVANCE (64 bit, RISC technology), with integrated 3D / 2D CAM, 1GB RAM
550 l
3-5 microns
2
10 l
Standard
13.5 kVA (3 phases, 400 ± 10% V)
6.0 / 0.8 kW
0.5-0.7 MPa
40–75 l / min
Additional options
-
HSP1200 - High Spec Package option for MV-1200S, includes: closed table, DLC and UV optical rulers, task scheduler, Corehold Function, digital touch filter pressure sensor for visualization on the monitor screen and power consumption monitoring sensor for calculating processing costs and energy saving settings;
-
3D CAM is an integrated software module for working with 3D models in addition to the standard 2D CAM.
EDM start hole EDM (Advanced Machinery EDM).

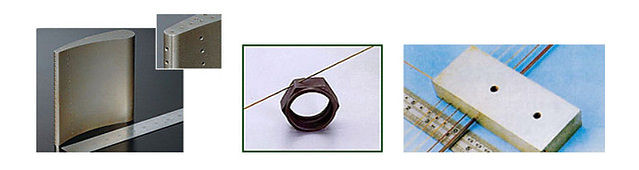

Advanced Machinery EDM high-speed EDM drilling machines are designed for drilling deep holes of small diameter in various conductive materials, such as hardened steel, stainless steel, hard alloy, copper, aluminum, and others. Electroerosive drilling is carried out by a tubular electrode with rotation and pumping of the working fluid through the internal cavity. The machines allow you to make holes of small diameter from 0.15 mm to 6.0 mm, depth up to 300 mm (the depth depends on the diameter of the electrode), while significantly faster than traditional methods, as well as “drilling” where it is practically impossible to obtain holes mechanically. You can drill holes in inclined, spherical and curved surfaces. With their help, you can get accurate concentric holes, carry out processing at an angle, avoid deformations at the inlet and outlet, burn out broken taps, drills, and bolts. The capabilities of these machines are most fully revealed in the electronic and aerospace industries (flashing holes with a diameter of 0.15 mm or more in hard-to-work materials - hard alloys, hardened steel, etc.), as well as engine-building, tooling, jewelry, manufacturing medical equipment and many other areas. But first of all, these machines are used to drill start holes in the workpieces of parts with subsequent processing on EDM wire-cutting machines.
Technical characteristics
Maximum dimensions of the part
Electrode Diameter Used
Maximum workpiece weight
Desktop size
Axis movements (XxYx Z)
Pulse generator
Maximum working current
Control system
Maximum drilling speed
Minimal electrode wear
Dielectric tank volume
The degree of filtration of the working fluid
Number of filters
Total plug-in electrical power
Compressed air pressure
810x510x240 mm
0.3–3.0 (0.15–6.0) mm
300 kg
450x260 mm
400x250x370 mm
Hcd
50 A
controller
40 mm / min
20 %
30 l
6 10 μm
1
6 kVA
0.5-0.7 MPa
Welding rotator RWP small (Intertekhpribor).
RWP POTTER is a welding rotator with a faceplate height of 280 mm and a load capacity of up to 25 kg. The advantage of this device is that the rotation speed of the fixed metal can be adjusted individually by the master welder. It must exactly correspond to the speed of formation of a particular seam. The design has a robust steel casing with a rotation mechanism on which can be installed, as a standard faceplate with grooves, and a universal chuck directly on the rotor. The faceplate has an electric drive to tilt the faceplate from 0 ° to 110 ° to ensure an optimal welding position, rotation speed from 0.4 to 15.00 rpm. There are mounting points on the rotator housing for mounting the welding torch support. Each positioner is equipped with an R2 automatic welding control unit by default. The controller allows you to control the welding cycle, find the zero point and provides the pneumatic lift of the welding torch.
Haas TL-1 CNC Universal Lathe.
Universal lathes combine the functionality of modern CNC machines with the simplicity of hand-held universal machines. Thanks to an intuitive programming system, manual machine operators can easily switch to CNC operation. Lathes allow you to perform all turning operations: the external turning of cylindrical and shaped surfaces, internal boring, drilling, cutting metric and inch threads, etc.
The maximum set diameter of the workpiece over the base, mm
The maximum set diameter of the workpiece over the carriage, mm
Distance between centers, mm
The maximum processed outer diameter, mm
The maximum processing length when turning between centers, mm
Spindle options
508
279
762
406
762
Spindle seat
Maximum spindle speed, rpm
Maximum torque on the spindle (at n = 355 rpm), Nm
Maximum power on a spindle, kW
The diameter of the hole in the spindle, mm
А2-5
1800
146
7,5
58
Feed options
The magnitude of the working displacements along the axis OX, mm
The magnitude of the working displacements along the axis OZ, mm
The maximum speed of idle movements of the working bodies along the axis OX, m / min
The maximum speed of idle movements of the working bodies along the axis OZ, m / min
Maximum allowable forces along the axis OX, kN
Maximum allowable forces along the axis OZ, kN
203
762
11,4
11,4
17,32
8,66
Accuracy options
Working area options
Caliper Positioning Accuracy, mm
Repeatability of caliper-positioning, mm
±0,010
±0,005
CNC device options
Type of device ............................................................................................................................... HAAS
The number of controlled axes ................................................................................................2
Type of monitor to display information...................................................................................LCD 15″
The speed of processing programs, blocks/sec................................................................. up to 1000
Type of interface for connecting removable storage media.............................................USB
The amount of memory for storing programs, GB..............................................................1
Minimum resolution of set values, mm .................................................................................0,001
